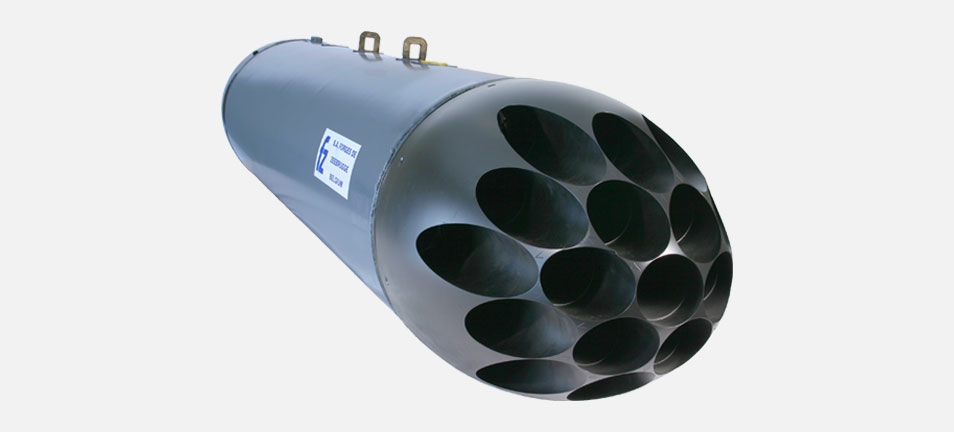

LAU51 19-tube metallic rocket launcher

LAU51 is an aluminium cylindrical 19-tube reusable rocket launcher with a non-removable aerodynamically shaped front and a removable rear fairing designed for fixed wing aircraft use.

There are two LAU51 rocket launcher models currently available.

Features

All LAU51 launchers are fitted with an electronic intervalometer, which provides a 40 ms or 60ms rocket firing time interval. Also, each launcher front section is provided with a front fairing used for protection during supersonic flight and adverse weather conditions.



LAU51

MOD.4

MOD.5



Single purpose

For motors equipped with FFAR fins

Dual purpose

For motors equipped with FFAR and WA fins

Mass

~77kg

~89kg

Length

1893mm

2307mm

Outer diameter

402mm

402mm

Detent mechanism

FZ81

FZ125
