Rocket motor

Depending on the platform and mission profiles, different types of rocket motors are available.

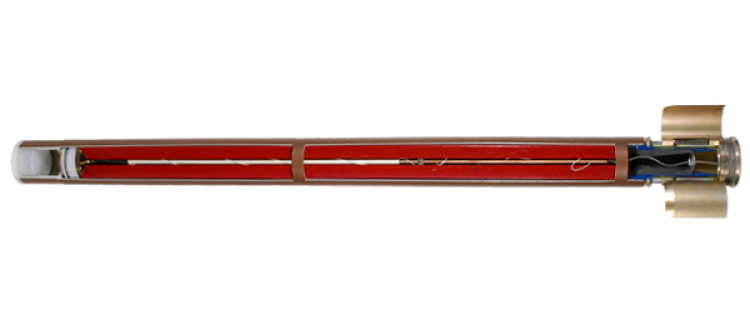

FZ90

Rocket motor
Thales Belgium (BL VTS) – Rockets 70mm (2.75”) : WA (WRAP AROUND) FZ90 star-shaped centre hole extruded double base (Smokeless, non-corrosive)

Features

  • WA (Wrap Around)
  • Total impulse: 680daN.s
  • Range (ground-to-ground): ~9100m
  • Propellant grain: star-shaped centre hole extruded double base
  • Length: 1060 mm
  • Mass: 6.3kg
  • Warhead interface : 2.400 " -6-29° STUB ACME 3G, fully compatible with all the 2.75 inch rocket warheads
  • Smokeless, non-corrosive
  • also available with reduced FOD/ejecta (FZ90 MOD.4)
