A portfolio of weapon management system for rocket system 70mm offering an easy way to integrate its weapon (gun pod, missile, rocket pod or launcher) and ammunition on helicopter or aircraft.
Weapon Management System

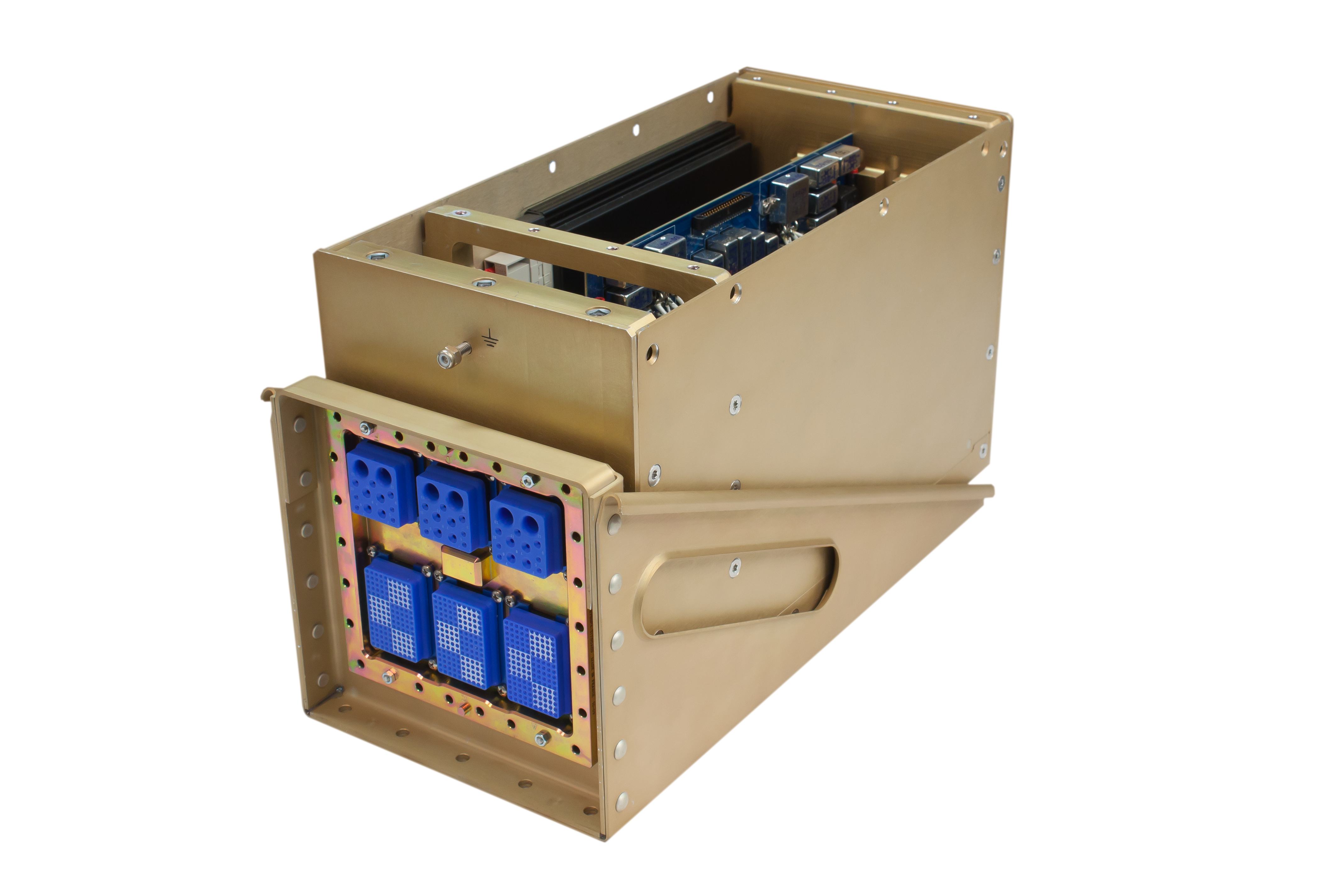

WMU - Weapon Management Unit
Features
- For conventional rocket warheads, guided rockets and rocket warheads with remote set fuze
- Rocket launcher and gun pod management up to 7 stores
- Interface with helicopter mission computer by :
- Arinc 429
- MIL-STD-1553
- RS-422
- Firing tables and ballistic calculation
- Management of other equipment such as sighting system, HLRU, ESU,…
- Connected to ACP to form a complete Weapon Management System (WMS)
- Latest technology and development with low risk of obsolescence
- Type of connector : MIL C 83527

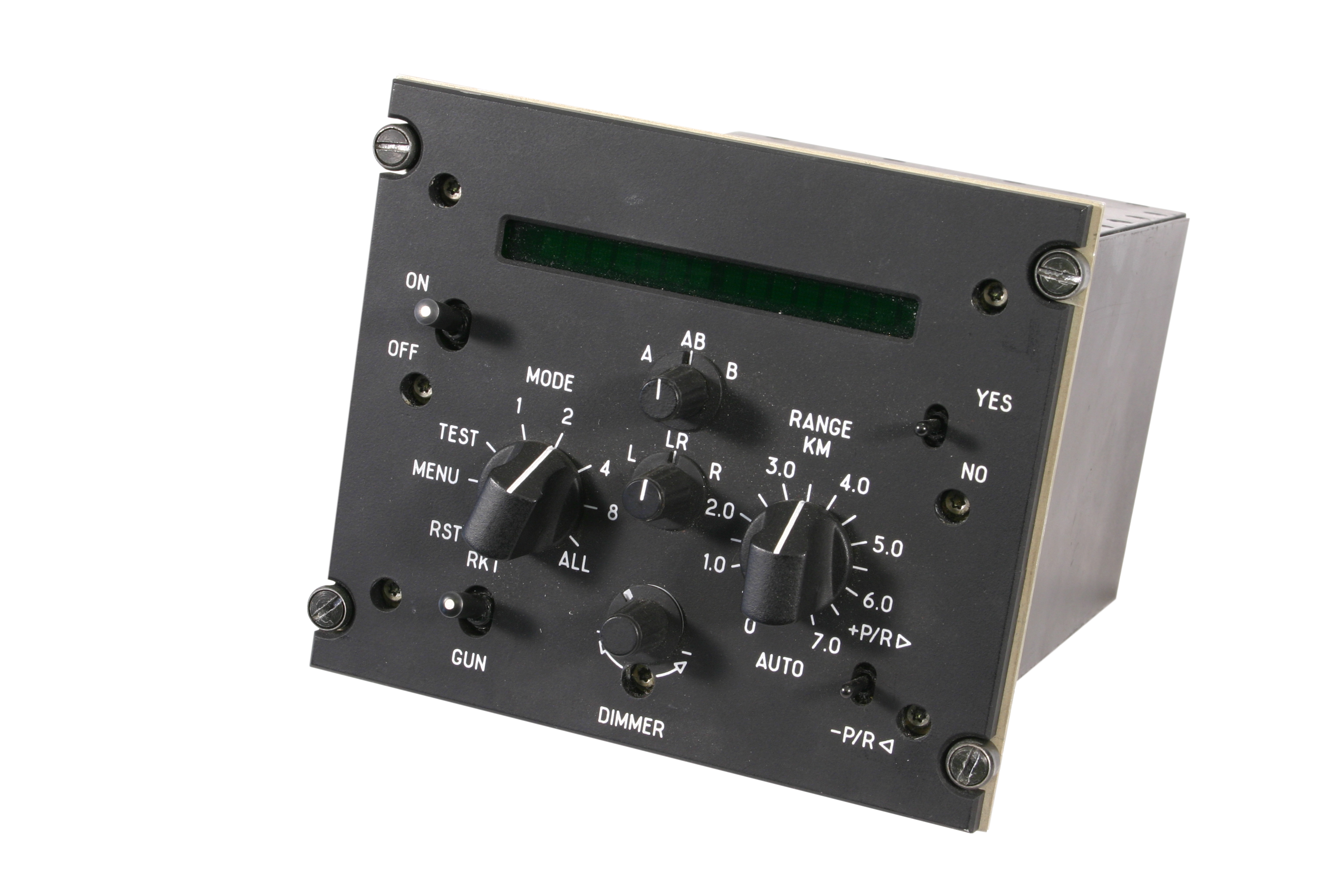

GRMU
Features
- For conventional rocket warheads and rocket warheads with remote set fuze
- Rocket launcher and gun pod management up to 4 stores

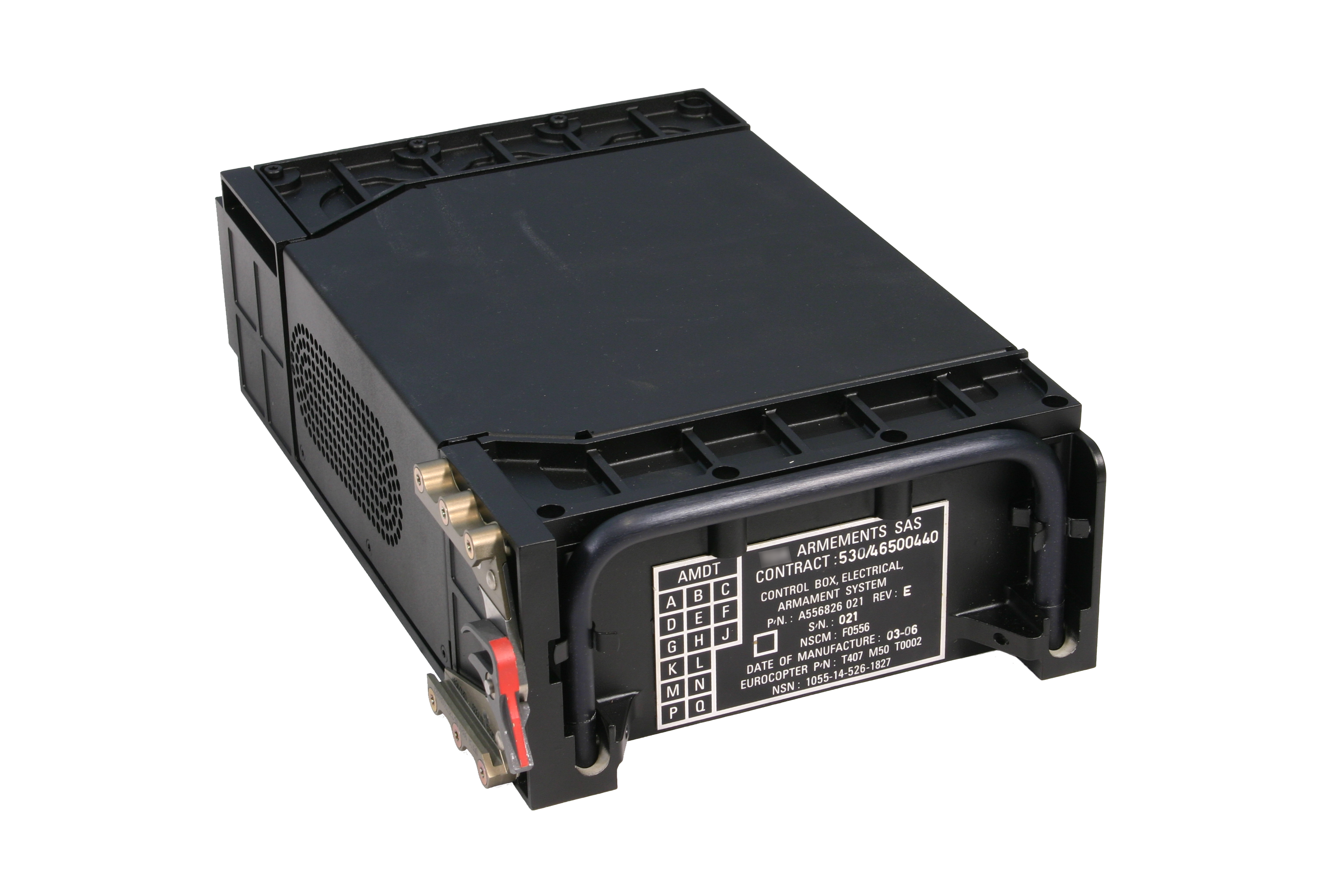

BHIR
Features
Firing control systems for FZ 70 mm rocket systems for :
- management up to 4 rocket launchers (7-12-19 tube)
- compatible with conventional rocket warheads and rockets warheads with remote set fuzes
- interfacing with the Management System of the rotary wing aircraft, via MIL-STD-1553.

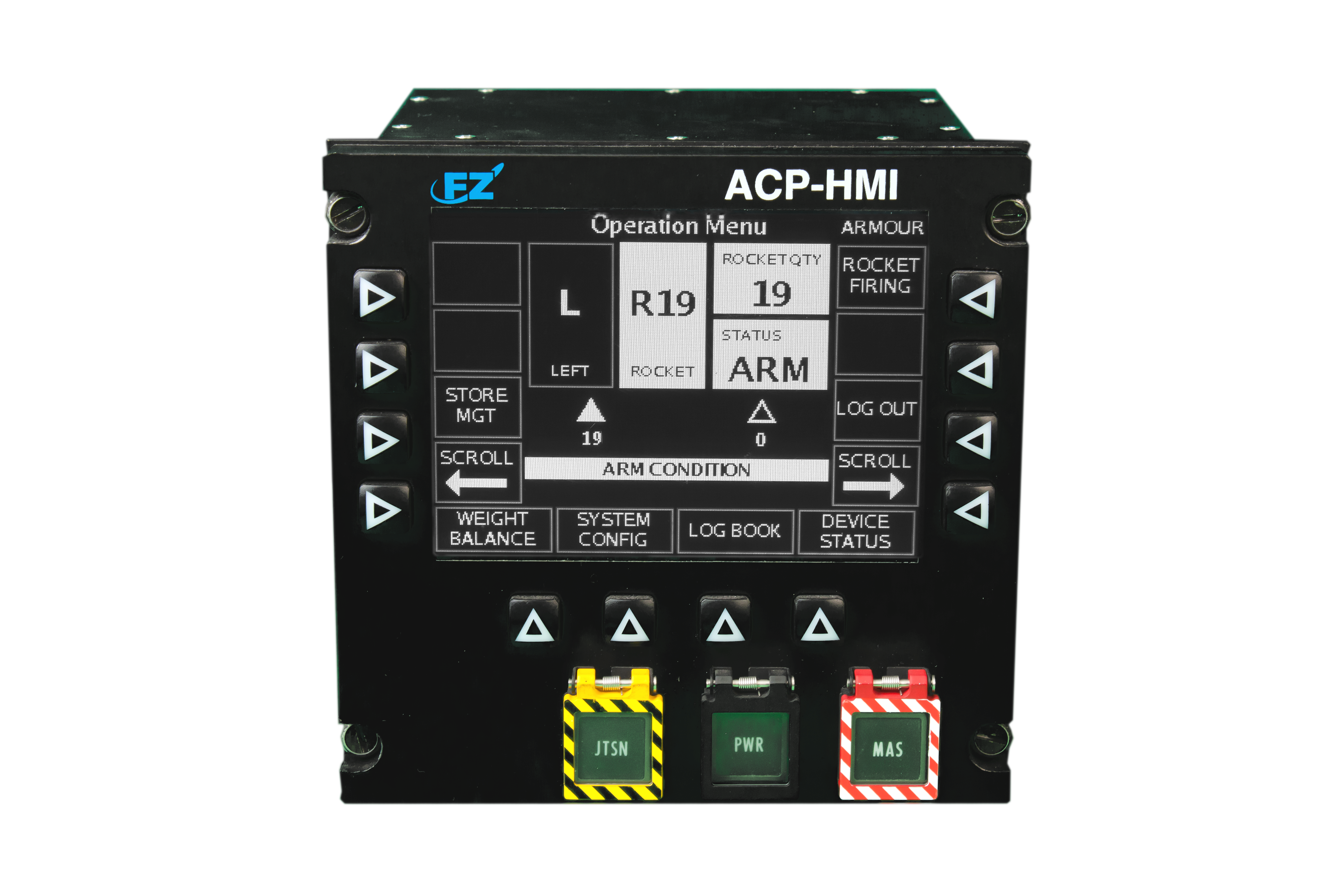

ACP - Armament Control Panel
Human-Maschine-Interface (HMI) of WMS (Weapon Management System)
Features
- Panel display combined with WMU or BHIR
- User friendly interface
- 5” AMLCD screen
- 12 programmable soft keys
- Fully programmable menus
- Integrated master arm switch
- Selective Jettison
- Night vision compatible

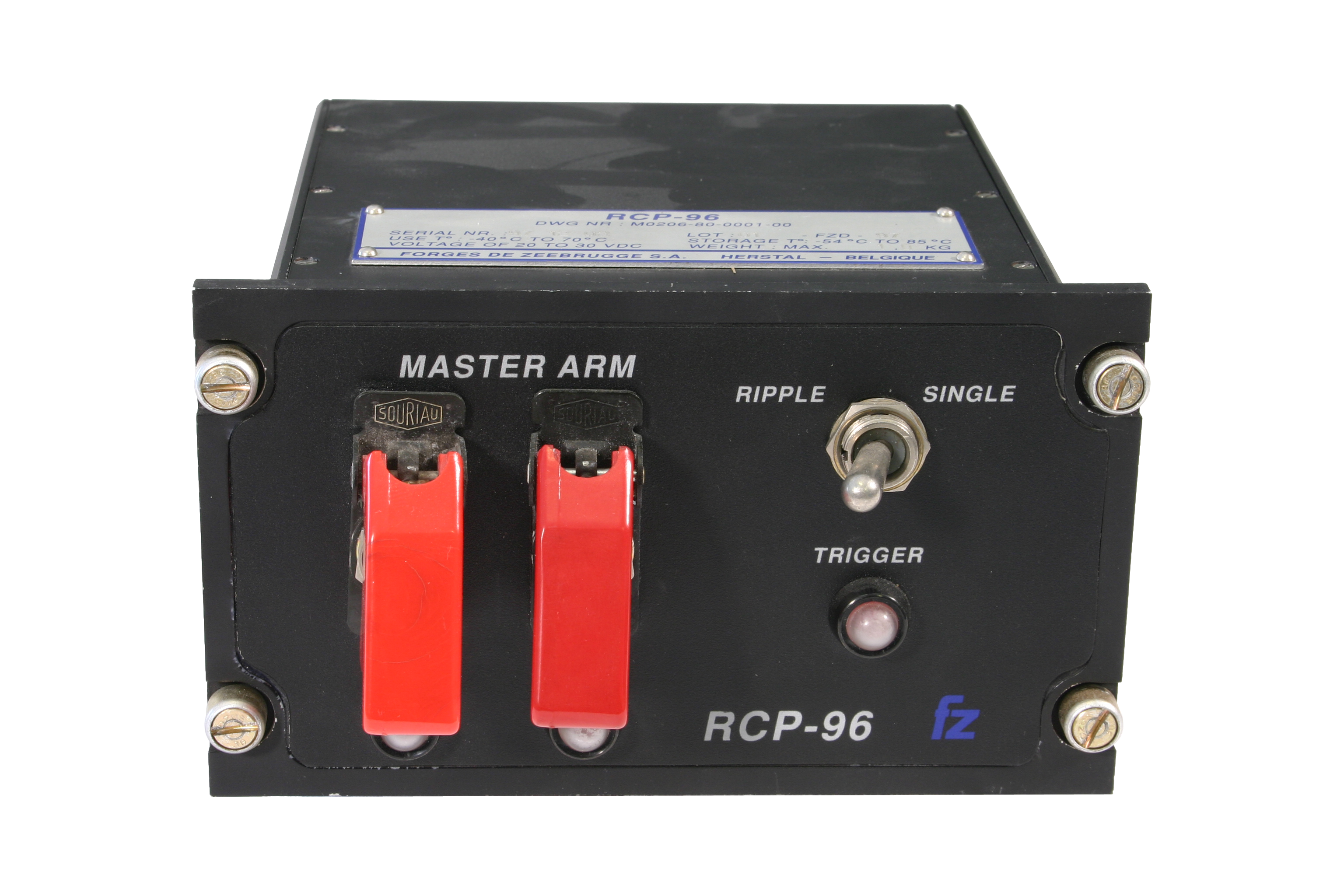

RCP-96 - Rocket Control Panel
Features
- For conventional rockets
- Management up to 2 rocket launchers
- For both H/C and A/C integration
- Usually combined with electronical intervallometer FZ129
