Depending on the platform and mission profiles, different types of rocket motors are available.
Rocket motor

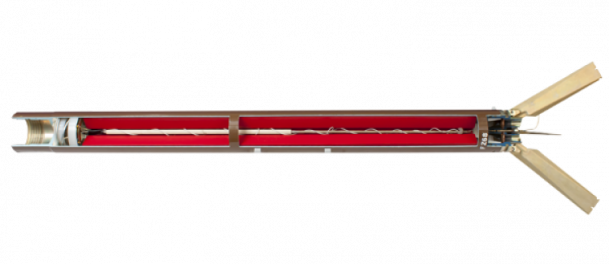

FZ276
Rocket motor for Laser Guided Rocket
![Thales Belgium (BL VTS) – Rocket system 70 mm (2,75”): FZ276 Rocket motor for Laser Guided Rocket FZ275 LGR](./images/products/p29_FZ276 rocket motor for laser guided rocket FZ275 LGR.png)
Features
- FFAR (Folding Fins Aerial Rocket)
- Total impulse: 680daN.s
- Range (ground-to-ground): ~9100m
- Propellant grain: star-shaped centre hole extruded double base
- Length: 1060 mm
- Mass: 6.3kg
- Warhead interface : 2.400 " -6-29° STUB ACME 3G, fully compatible with all the 2.75 inch rocket warheads
- Smokeless, non-corrosive
