Rocket motor

Depending on the platform and mission profiles, different types of rocket motors are available.

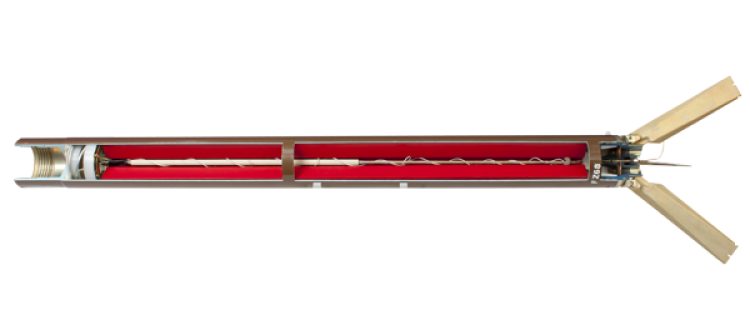

FZ68/FZ67

FZ68 for helicopter/FZ67 for aircraft
FZ | Forges de Zeebrugge – Rockets 70mm (2.75”) : FFAR (FIN FOLDING) FZ68 / FZ67 star-shaped centre hole extruded double base (Smokeless, non-corrosive)

Features

  • FFAR (Folding Fins Aerial Rocket)
  • Total impulse: 557daN.s
  • Range (ground-to-ground): ~ 7700m
  • Propellant grain: star-shaped center hole extruded double base
  • Length: 1006 mm
  • Mass: 5 kg
  • Warhead interface: 2.400 ’’ - 6-29°STUB ACME 3G , fully compatible with all the 2.75” rocket warheads
  • Smokeless, non-corrosive
