For fixed wings aircrafts (7 & 19 tube)

2 different sizes are available : 7 tube (LAU32 or FZ800 for fixed wings aircraft) and 19 tube (LAU51 for fixed wings aircraft) :

The MOD.4 version of rocket launchers LAU51 and LAU32 (fixed wings) are equipped with single purpose detent mechanism FZ81 suitable and fully compatible with FFAR rocket motors FZ67 (fixed wings) and FZ68 (rotary wings).

The MOD.5 version of rocket launchers LAU51 and LAU32 (fixed wings) and FZ800 are equipped with dual purpose detent mechanism suitable and fully compatible for both rocket motors WA (FZ90) and FFAR (FZ67 or FZ68).

FZ800 has been particulary developped to fire the laser guided rocket FZ275 LGR.

7-tube

Thales Belgium – Rocket system 70mm (2.75”) : LAU32 MOD.4 and LAU32 MOD.5

LAU32 MOD.4

For motors equipped with FFAR fins

  • Mass: ~38kg
  • Length: 1839mm
  • Outer diameter : 252mm
  • Detent mechanism FZ81

LAU32 MOD.5

Dual purpose for motors equipped with  FFAR or WA fins

  • Mass: ~37kg
  • Length: 2003mm
  • Outer diameter : 252mm
  • Detent mechanism FZ125

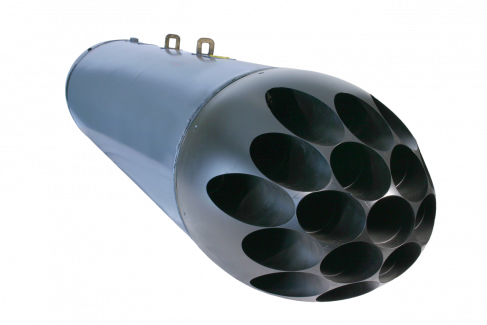

19 tube

Thales Belgium – Rocket system 70mm (2.75”) : LAU51 MOD.4 and LAU51 MOD.5

LAU51 MOD.4

For motors equipped with FFAR fins

  • Mass: ~77kg
  • Length: 1839mm
  • Outer diameter : 402mm
  • Detent mechanism  FZ81

LAU51 MOD.5

Dual purpose for motors equipped with FFAR or WA fins

  • Mass: ~89 kg
  • Length: 2307 mm
  • Outer diameter : 402 mm
  • Detent mechanism FZ125
